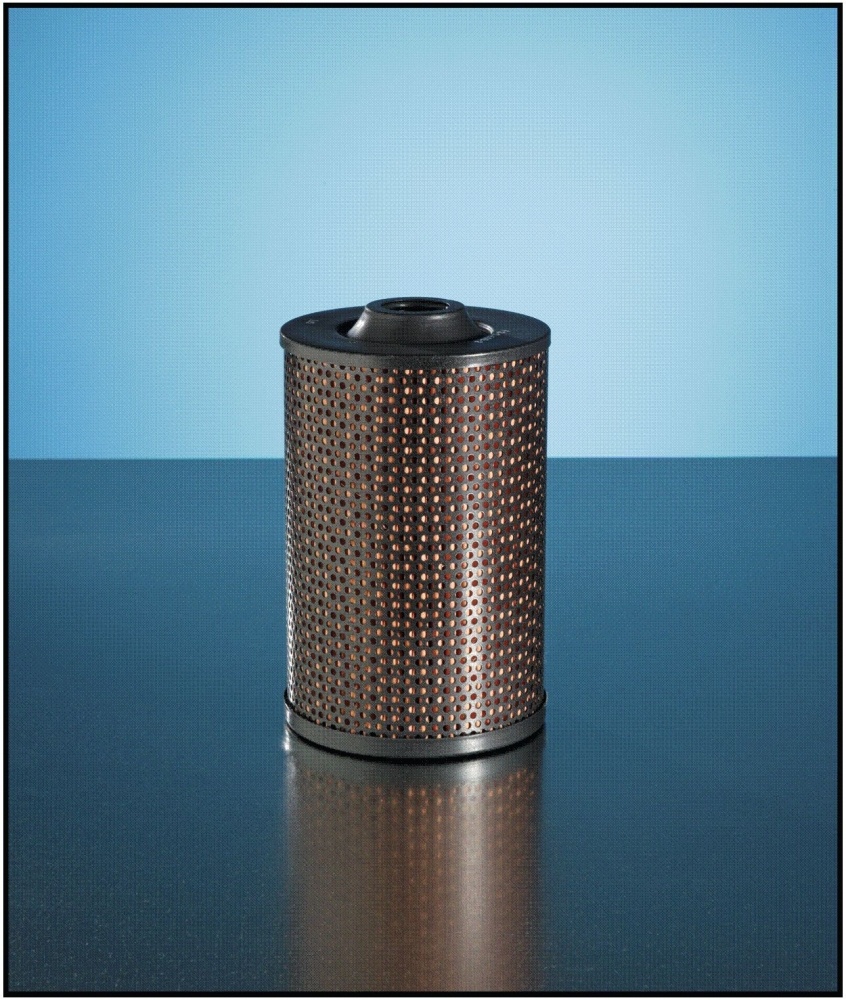

MODEL CC-21-7 CC-22-7
- Carbon steel structural components
- Designed to fit PECOFacet Fuel-Gard 21 & 22 housings
Standard Design Features
- Max. recommended operating temperature: 180ºF (82°C)
- Maximum differential pressure: 75 psi (5.25 kg/cm²)
- pH range from 5 to 9
- Flow direction: outside to in
- Cartridge dimensions: OD 6” (152 mm), ID 1 ½” (38 mm), Nominal Length 9” (230 mm) or 12” (300 mm)
Materials
- Carbon steel structural components
- All metal components coated to protect against corrosion
- Standard gaskets are Buna-N - other materials available on request
