Fuel-Gard® - Model VF-21SB / 22SB Microfilter
- NEW DESIGN. Quick open swing bolt type closer
- New optional mounting brackets for installation
- Micron ratings of 2, 5, 10 & 25
Fuel-Gard® Housings

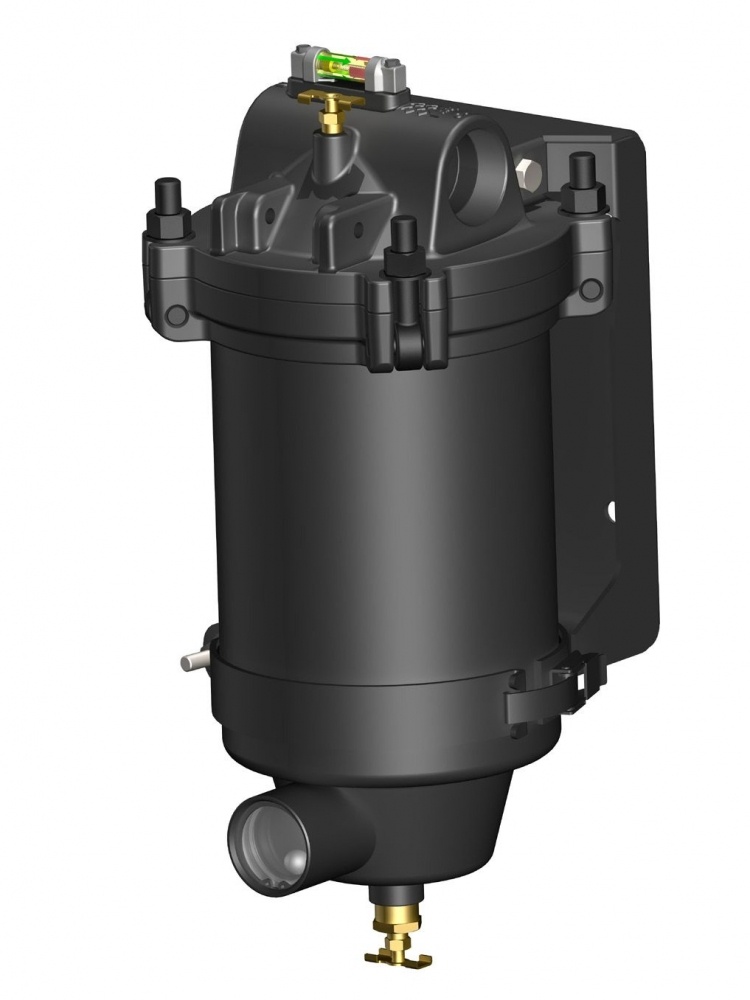

Model VF-21SB / 22SB Filter
The PECOFacet VF-21SB/22SB are versatile, compact, light-weight housings and provide superior in-line filtration protection.
Both interior and exterior surfaces of the carbon steel body are epoxy coated to protect against corrosion. This sturdy, single cartridge housing is easy to maintain and requires only 2” (51 mm) base clearance for cartridge change out.

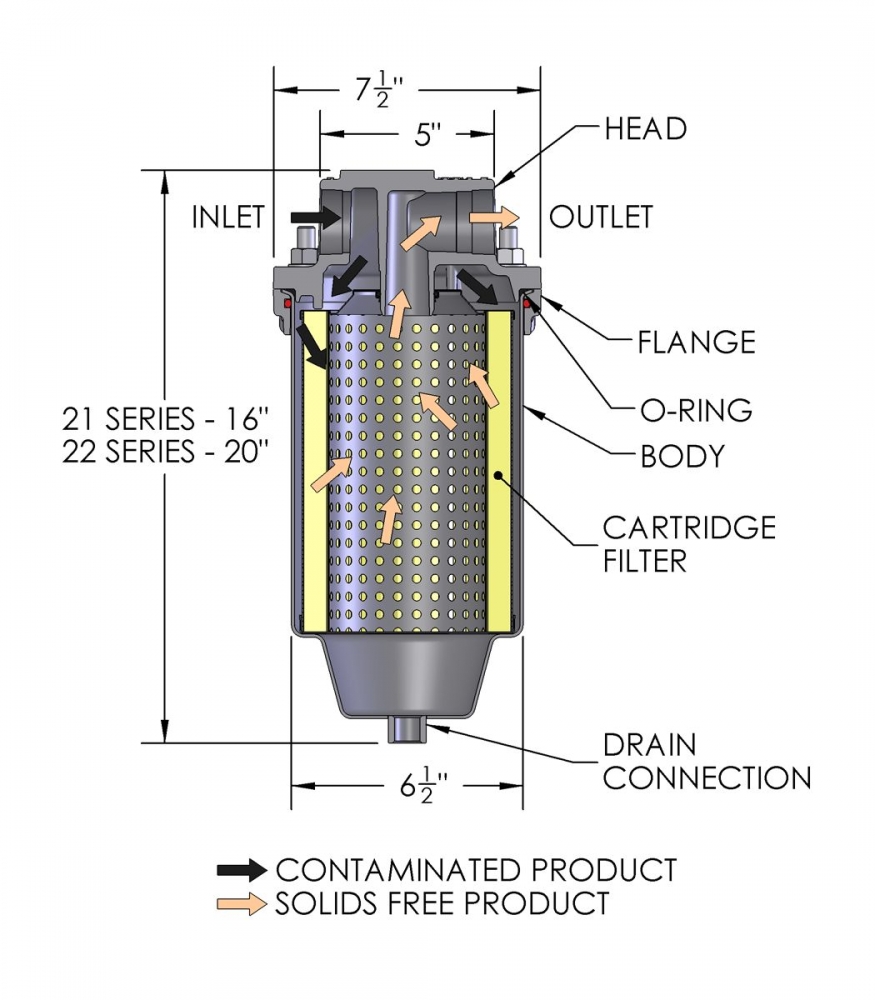

STANDARD HOUSING DESIGN
• Body: Carbon steel
• Aluminum Head
• Interior and exterior: Epoxy coated
• Design pressure: 150 psi
• Closure: Swing-bolt
• Closure seal: Buna-N o-ring—other materials available upon request
• Vent and drain connections with brass petcocks provided
• Inlet and outlet connections: 11∕2" NPT female threaded
• One filter cartridge installed
Both interior and exterior surfaces of the carbon steel body are epoxy coated to protect against
corrosion. This sturdy, single cartridge housing is easy to maintain and requires only 2” (51 mm)
base clearance for cartridge change out.
