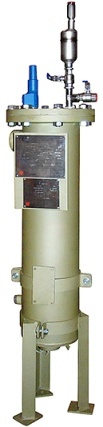

SuperFlex™ - Model VFGM
- Absorbs free and emulsified water, removes ultra-fine solids and shutdowns the systems flow when hit with a localized slug of water
- Welded carbon steel construction
- Designed for 250 psi (17.5 kg/cm²) @ 250ºF (121ºC)

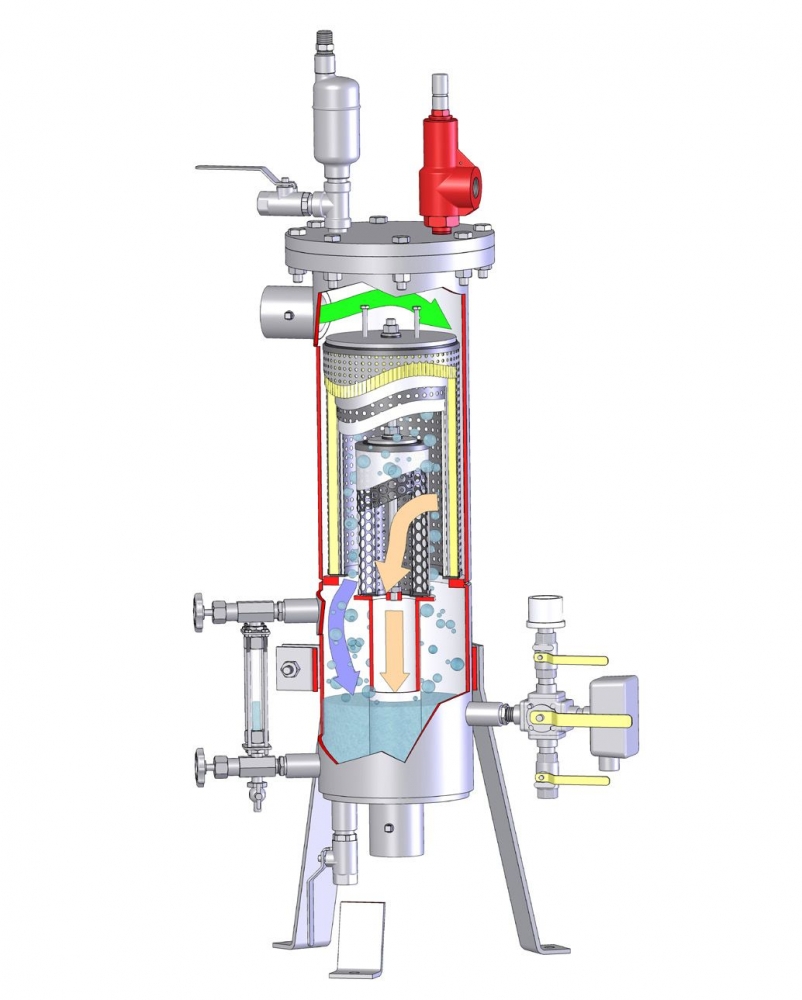

PECOFacet VFGM Model SuperFlex™ monitor housings, equipped with FG-O Model 6" OD monitor cartridges, continually check for the entire flow of fuel, not just mere samples, for water or solids contamination. By performing three jobs, the monitors assure clean, dry fuel. They absorb free and emulsified water, remove ultra-fine solids, and shutdown system flow when hit with a localized slug of water.
PECOFacet's VFGM Model SuperFlex™ monitor housings are built to ASME Code, constructed of carbon steel. Stainless steel construction is available. They are furnished with FG-O Model 6" monitor cartridges that meet the 4th edition of EI specification 1583 Aviation Fuel Filter Monitors with Absorbent Type Elements.
- Welded carbon steel construction
- Built to ASME Code, Section VIII, Div. 1, stamped and certified
- Designed for 250 psi (17.5 kg/cm²) @ 250ºF (121ºC)
